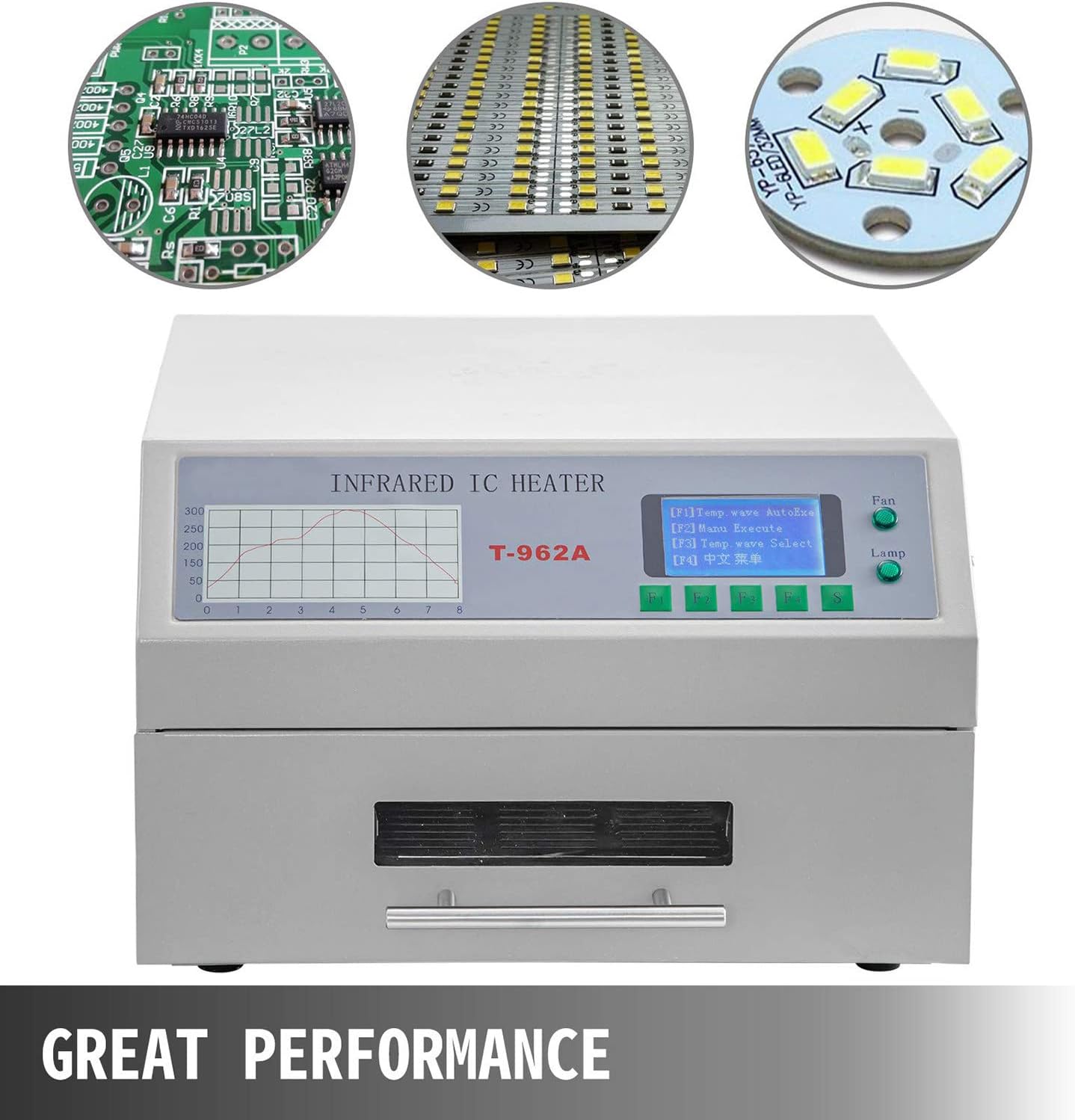

Reflow Welding Machine T962A, Reflow Welder AC220V/110V, Reflow Station 1500W, Reflow Soldering Machine, Reflow Soldering Machine 300 x 320mm LCD, for CHIP, SOP, PLCC, QFP, BGA etc.

♥This is a reflow oven that works automatically under the control of a microcomputer.User Interface Use the T962A input keys and LCD display to observe the progress of the heating cycle on the LCD display by selecting a preset heating mode.♥8 temperature curves optionalCurve 1, suitable for: 85Sn/15Pb；70Sn/30PbCurve 2, suitable for: 63Sn/37Pb；60Sn/40PbCurve 3, applicable to: Sn/Ag3.5；Sn/Cu.75；Sn/Ag4.0/Cu.5Curve 4, suitable for: Sn/Ag2.5/Cu.8/Sb.5；Sn/Bi3.0/Ag3.0Curve 5, suitable for: red glue standard curing temperature curve, Heraeus PD955MCurve 6, applicable to: PCB board rework, etcCurve 7/8, suitable for: user-defined curve♥Specifications:Infrared reflow oven model: T962ARated power: 1500WMaximum effective welding area: 300 x 320 mm (11.8 x 12.6 inch)Power supply: AC110V/220V 50Hz/60HzTemperature range: 0°C - 280°CCycle time: 1~8 min♥Package content1 x reflow oven1 x instruction manual♥After-sales service: If you have any questions, please contact us by email, we will provide the best quality service within 24 hours!

• 【FULLY AUTOMATIC】The reflow soldering machine is fully automatic controlled by a microcomputer, and the entire soldering process from preheating, soaking, reflow soldering to cooling is automatically completed. There are backflow, drying, heat preservation, shaping, rapid cooling and other functions.
• 【8 TEMPERATURE OPTIONS】This reflow oven has eight temperature parameter curves to choose from, and has the function of setting heating and forced cooling; the whole soldering process is completed automatically, and the operations is simple.
• 【HEATING UNIFORM TEMPERATURE DESIGN】1500W fast infrared heating uniform temperature fan output power makes the temperature more accurate and uniform, and automatically and accurately completes the entire production process according to your preset temperature curve.
• 【LARGE VOLUME REFLOW AREA】The soldering area of this fully automatic infrared heater soldering machine is 300x320mm/11.8x12. The temperature range is 100°C - 280°C; the cycle time is 1-8 minutes. Large area welding can achieve high efficiency.
• 【WIDE APPLICATION】It can complete the welding of CHIP, SOP, PLCC, QFP single-sided and double-sided PCB boards, BGA and other packaging forms; it can be used for product glue curing, circuit board thermal aging, PCB board maintenance, etc. Widely used in research and development and small batch production of various enterprises and institutions.
