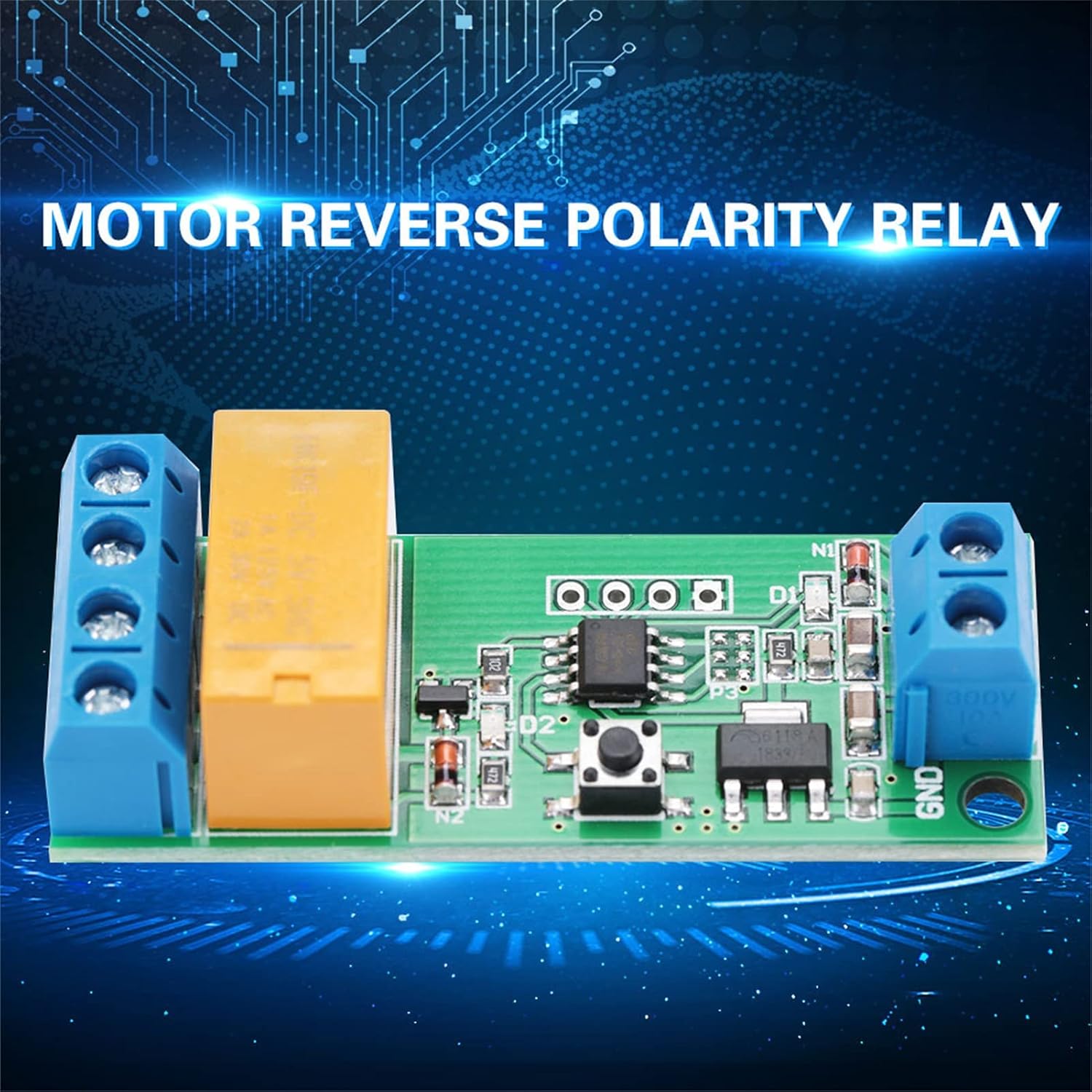

DC 5-12V Motor Reverse Polarity Relay Module Adjustable Delay Timer Switch for DC Motor Reverse Polarity Relay 2A Drive Current

FeaturesItem Type: Motor Reverse Polarity RelayLoad Current: Maximum 2AForward Maximum time: 5000 seconds, 0.1 seconds stepReverse Maximum time: 5000 seconds, 0.1 seconds stepSize: Approx. 54 x 22 x 15mm / 2.13 x 0.87 x 0.59inWeight: 0.5 oz(approx.)How to use:VIN connected to the positive of power supply , GND connected to the negative of power supply;P+ connected to the positive of motor power supply, P- connected to the negative of motor power supply;M + & M- connected to both ends of the motorAfter power, D1 flashes for 3 times, D2 off, M+ output positive, M- output negative, motor forward; After a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; After a time delay T2, D2 off, M+ output positive, M- output negative, motor forward; And so on.T1: motor forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)T2: motor reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)By "Time multiple selection" setting, the maximum delay is up to 40,000 secondsHow to Set Up:After power on, D1 3 blinks, enter the "work mode"D2 on Reversal, D2 off ForwardPress and hold the key for 2 seconds, D1 on, enter the "setup mode"D2 off, It\'s forward "setup mode"In forward "setup mode", continuously trigger KEY twice, D1 off, enter "Standby timer mode"In the "Standby timer mode" , trigger KEY to start timing(enter "Timing Mode")D1 flashing means it is timing("Timing Mode")Trigger KEY again to stop the clock(exit "Timing Mode")D1 flashing time is forward time(T1)Press and hold the Key for 2 seconds, D2 on, enter the Reverse "setup mode"In Reverse "setup mode", continuously trigger key twice, D1 off, enter "Standby timer mode"In the "Standby timer mode", trigger KEY start timing(enter "Timing Mode")Package List1 x Motor Reverse Polarity Relay

• [Efficient ] -- Operating voltage: DC 5-12V (5V 6V 9V 12V), load voltage: DC 1-48V or ac 85-265V. load current: 2A.
• [ Performance] -- Sturdy construction for long-lasting use. ideal for reversing motor polarity efficiently and effectively. a must-have for diy enthusiasts.
• [Easy Installation] -- Simple setup with clear instructions. vin to positive power supply, gnd to negative, p+/p- to motor, m+/m- to motor ends.
• [User-friendly Design] -- Easy setup mode with led indicator. standby timer mode for precise timing control. suitable for various motor applications.
• [Timed Reversal] -- How to Set Up: After power on, D1 3 blinks, enter the work mode. on Reversal, off Forward.
