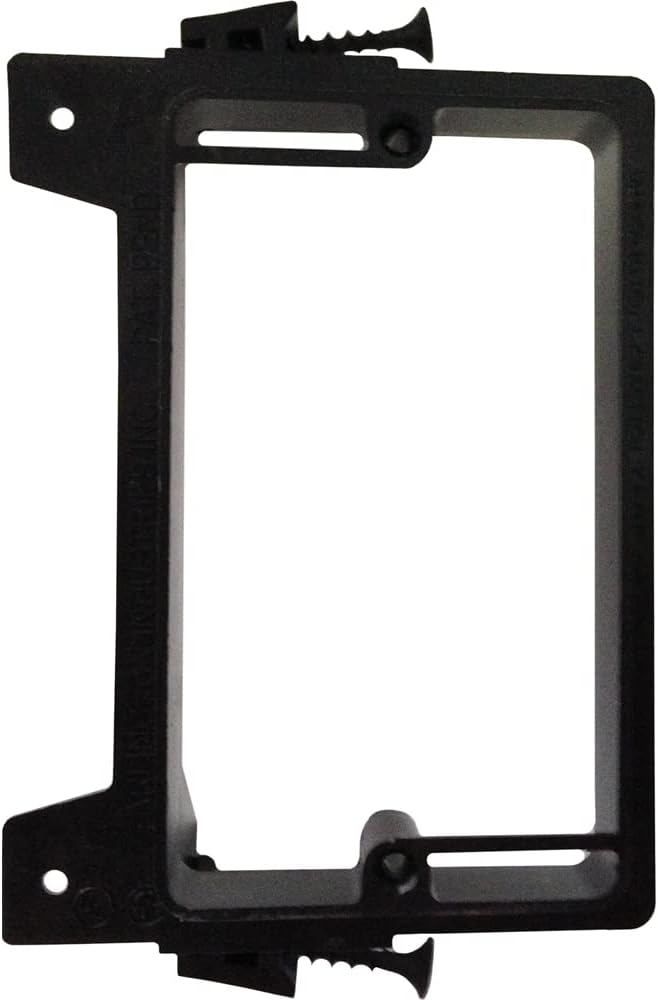

Arlington LVS1-1 Low Voltage Screw-On Mounting Bracket, 1-Gang
Product details
| Management number | 229887061 | Release Date | 2026/05/31 | List Price | $2.80 | Model Number | 229887061 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
From the Manufacturer Arlington's non-metallic, Low Voltage Mounting Brackets are the time and money-saving solution for faster and easier mounting of Class 2 communications, computer and cable TV wiring. This bracket is for New Construction designed to screw directly to the stud. Its a lower cost than extension rings or mud rings. It comes ready to install, with nails parked in place. IT allows wall plate to mount flush with the wall surface. Also it is UL/CSA listed. Arlington fittings are carefully inspected and our manufacturing process is designed to prevent the possibility of a defective product leaving our plant.
- Overall Dimensions - 1.61"L x 3.14"W x 5.34"H, Nailing Flange Thickness - 0.090" (Front and Side), Panel Cut Out Dimensions - 2.15" W x 3.60" H.
- Shallow Mount - Only 0.55" Deep (Not Including Stud Side Nail Flange), Minimum Sheetrock or Panel Thickness - 0.45", Side Wall Thickness - 0.080", Gang: 1 Gang.
- Single Gang Open Back Bracket. Commonly Referred to as a Mud Ring. For New Construction Applications. Run More Wire Easier with Brackets vs Boxes.
- Mounts to Wood Studs or Metal Stud with Supplied Screws. Impact Resistant Plastic results in less breakage on Job site. Flange around box supports sheetrock.
| UPC | 018997002624 013555007202 018997002655 735090122133 001899700262 |
|---|---|
| ASIN | B003JQL14G |
| Set Name | 1 Gang Set |
| Brand Name | ARLINGTON |
| Item Depth | 0.55 inches |
| Unit Count | 1.0 Count |
| Item Weight | 0.04 Kilograms |
| Manufacturer | Arlington Industries |
| Model Number | LVS1 |
| Material Type | Metal, Plastic, Wood |
| Mounting Type | Wall Mount |
| Item Dimensions | 10 x 2 x 2.7 inches |
| Manufacturer Part Number | LVS1 |
| Manufacturer Warranty Description | Arlington fittings are carefully inspected and our manufacturing process is designed to prevent the possibility of a defective product leaving our plant. In the event any of our products are found to be defective, we will replace them with new product free of charge. The time limit for this warranty is one year following the date of sale or one year after the date of installation, whichever is the earlier date. This warranty does not apply when the product is used for any purpose other than the intended use as described in the Arlington literature. This warranty does not apply when the product is used for any installation which would violate the national electrical code or any code which takes precedence in a particular jurisdiction. Labor is not included. |
| Global Trade Identification Number | 00018997002624, 00018997002655 |
