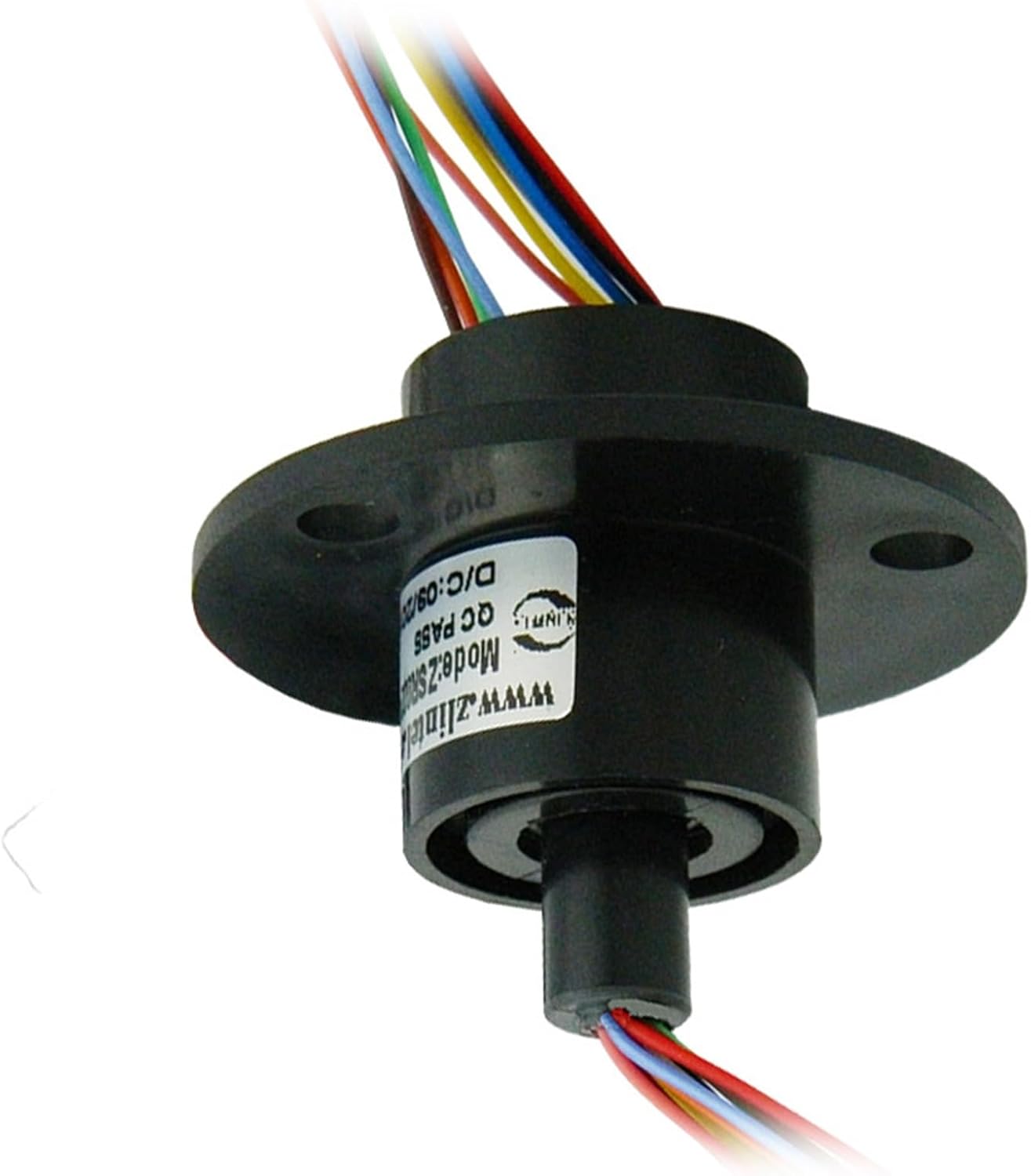

1PCS hat-Type Signal Conductive Slip Ring Rotary Joint with an Outer Diameter of 22mm. The Equipment Slip Ring rotates 360 Degrees to Transmit Electrical Signals.
Product details
| Management number | 211027766 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211027766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1PCS hat-type signal conductive slip ring rotary joint with an outer diameter of 22mm. The equipment slip ring rotates 360 degrees to transmit electrical signals.Working temperature: -20℃～+80℃Dielectric strength: 100MΩ@600VDCWorking humidity: 10%～85%RHProtection level: IP51Wire length: 200mmShell material: Engineering plastic/aluminum alloyContact material: gold-gold/precious metalmodelZSR022-12DNumber of channels12Rated current2 A/channel rated voltage240VAC/DCSpeed0-250rpm outer diameterø22mmContact materialprecious metalsShell materialEngineering plasticsdynamic resistanceMinimum 1mΩelectrical noise<;10mΩ,50mA,5RPMWire specificationsAWG28 silver plated TeflonCompressive strength500VDC@50Hz,10sWire lengthStandard 250mmDielectric strength500mΩ@500VDC,10sProtection levelIP51working temperature-20℃ ~+60℃ (recommended)Working humidity10%-85% RH
- 1PCS hat-type signal conductive slip ring rotary joint with an outer diameter of 22mm. The equipment slip ring rotates 360 degrees to transmit electrical signals.
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | CTDOFUM |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
